Linkit One and MQ-135 gas sensor example

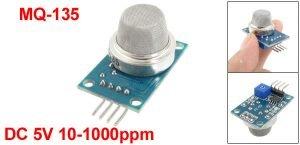

MQ-135 gas sensor is a hazardous gas detection apparatus for the family, the environment, suitable for ammonia, aromatic compounds, sulfur, benzene vapor, smoke and other gases harmful gas detection, gas-sensitive element test concentration.

Air quality sensor is for detecting a wide range of gases, including NH3, NOx, alcohol, benzene, smoke and CO2. Ideal for use in office or factory, simple drive and monitoring circuit.

The sensitivity of the sensor can be adjusted by using the potentiometer.

FEATURES
* High sensitivity to Sulfide, benzene ,steam, smoke and other harmful gases
* Long life and low cost
* Simple drive circuit

Connection

Code

[codesyntax lang=”cpp”]

void setup()
{
  Serial.begin(9600);
}

void loop()
{
  float sensorVoltage;
  float sensorValue;

  sensorValue = analogRead(A0);
  sensorVoltage = sensorValue/1024*3.3;

  Serial.print("sensor voltage = ");
  Serial.print(sensorVoltage);
  Serial.println(" V");
  delay(1000);
}

[/codesyntax]

Results

Again look at the serial monitor, you need to let the sensor stabilise. Remember it consists of a heating element, so you effectively have to let the sensor ‘heat up’.

sensor voltage = 0.30 V
sensor voltage = 0.31 V
sensor voltage = 0.33 V
sensor voltage = 0.34 V
sensor voltage = 0.35 V
sensor voltage = 0.32 V
sensor voltage = 0.31 V
sensor voltage = 0.30 V
